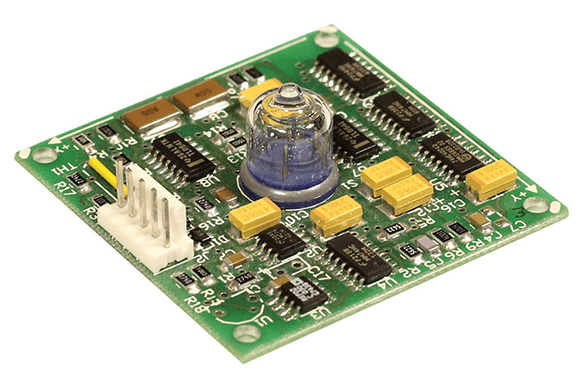

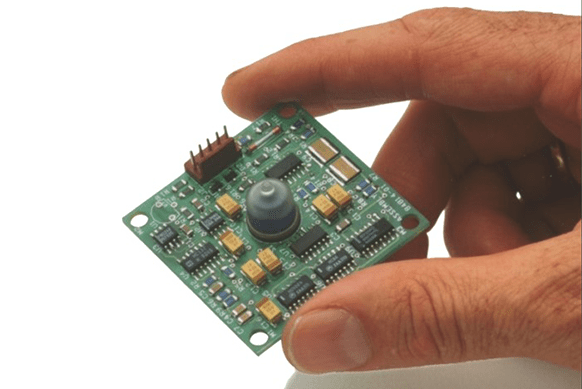

The dual-axis Model 900 is an inexpensive, gravity-referenced clinometer with analog voltage output and compact dimensions. Sold without a housing, its small size and performance make it an excellent choice for many OEM, test, and measurement applications. It is available in high-gain, standard, and wide-angle versions, each with a different angular range.

Model 900 accepts a wide input voltage range and provides high-level single-ended outputs that are easily measured with any voltmeter or digital recording system. Viscous damping and temperature measurement are available as options.

Notes:
1: Resolution calculated at 1mV
2: Linear scale factor calculated from BFSL through a calibration curve
3: Linearity calculated as max % deviation from BFSL. 0.05% linearity achievable using a polynomial

*Specifications subject to change without notice on account of continued development.
