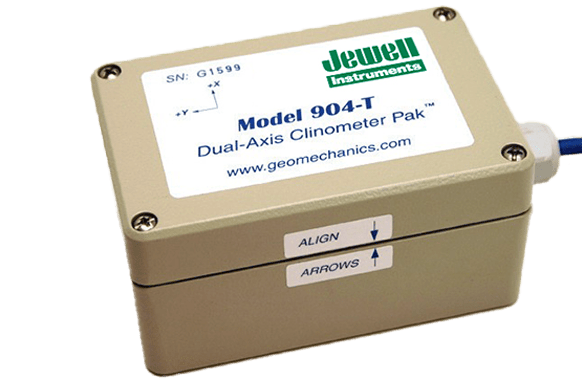

The Model 904-T Clinometer Pak unites our Model 900 Biaxial Clinometer with a weatherproof NEMA 4X (IP65) enclosure for indoor or outdoor applications that demand mechanical and environmental protection.

SKU: A904 Category:

The Model 904-T Clinometer Pak unites our Model 900 Biaxial Clinometer with a weatherproof NEMA 4X (IP65) enclosure for indoor or outdoor applications that demand mechanical and environmental protection.

Choose the high-gain, standard or wide-angle version, each with a different angular range. Clinometer Pak’s internal circuitry accepts a wide input voltage range and provides stable, low-impedance analog outputs for measurement by dataloggers, PLCs, digital voltmeters, and other recording devices.

A temperature sensor is included as a standard feature. Options include viscous damping and 0-5 Volt output.

This product is also available in a submersible stainless steel enclosure.

Notes:

1: Resolution calculated at 1mV.
2: Linear scale factor calculated from BFSL through calibration curve.
3: Linearity calculated as max % deviation from BFSL. 0.05% linearity achievable using a polynomial.

*Specifications subject to change without notice on account of continued product development

Weight

453.59 grams
Dimensions

119.89 x 80 x 59.94 mm
Angular Range

±10, ±25, ±50
Resolution

0.005°, 0.01°, 0.02°
Repeatability

0.02°
Scale Factor

10°, 25°, 4°
Non-linearity (%)

1, 2.5, 7
Output Voltage (V)

±2.5 or 0-5
Channels

Temperature, X-tilt, Y-tilt
Kz Coefficient (°/C, typical)

±10 arcsec
Ks Coefficient (%/C, typical)

±0.03
Time Constant (seconds)

0.15
Natural Frequency (Hz)

10
Power

0-5 Output: +10.5 to +26.5 VDC, 250mV ripple max, 7mA, Reverse polarity protected, ±2.5 Output: +8 to +24VDC
Environmental

0-90% humidity, Operating: -40°C to +80°C, Storage: -40°C to +85°C
Materials

Die-cast aluminum, Painted
