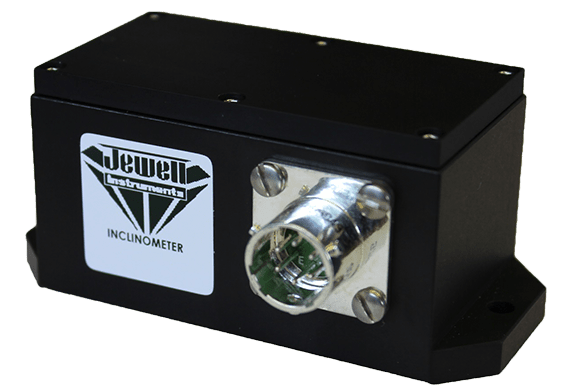

The 750-150 tiltmeter is a high-performance, single-axis tilt sensor with the same specifications as the 750-100, but housed in a larger, more ruggedized, with an IP66 enclosure. The fluid damped mechanism delivers superior noise rejection in high shock and vibration environments as well as excellent output stability.

Units are available with a 6-pin connector, pin-terminals, or a wired connection option. Available outputs include 0-5V and 4-20mA. Custom input ranges, filters, and temperature compensation are also available on request.

Black Diamond Series

The Jewell Black Diamond Series inclinometer is a low cost, high precision tilt sensor designed with higher accuracy than comparable MEMS devices. It is meant for geotechnical monitoring applications including bridge sag and sway, deflection measurement, platform leveling and structural analysis.

Notes:

1: Full Range is defined “from negative full input angle to positive full input angle.”
2: Nonlinearity is specified as deviation of output referenced to theoretical sine function value, independent of misalignment.
3: Full Resolution is achieved with noise reduction techniques.
