The 750-100 tiltmeter series is a rugged, high performance, single-axis tilt sensor designed for peak performance in extreme conditions.

The fluid damped mechanism delivers superior noise rejection in high shock and vibration environments as well as excellent output stability.

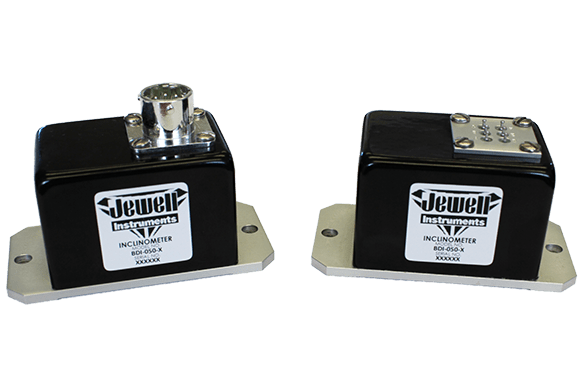

Units are available with a 6-pin connector or pin-terminals. Available outputs include 0-5V and 4-20mA. Custom input ranges, filters and temperature compensation are also available on request.

Black Diamond Series

The Jewell Black Diamond Series inclinometer is a low cost, high precision tilt sensor designed with higher accuracy than comparable MEMS devices. It is meant for geotechnical monitoring applications including bridge sag and sway, deflection measurement, platform leveling and structural analysis.

Notes:

1: Full Range is defined “from negative full input angle to positive full input angle.”
2: Nonlinearity is specified as deviation of output referenced to theoretical sine function value, independent of misalignment.
3: Full Resolution is achieved with noise reduction techniques.
