The Pro3600 can measure all angles in a 360 degrees range. It has a rugged aluminium frame with a V–shaped bottom for easy measurement on rounded surfaces. It has a RS232 port to connect and download the readings to your computer.
Digital Levels

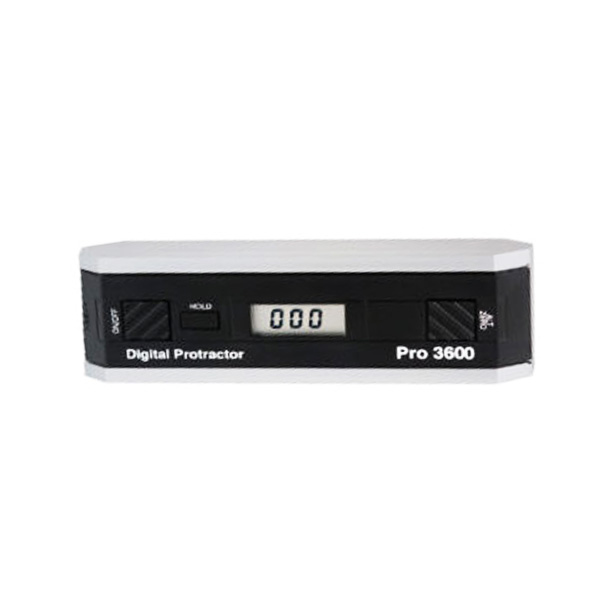

PRO 3600 Digital Protractor
R6900,00
The Pro3600 has a high accuracy and comes with a built in RS232 port that enables you to view your measurements on your PC. It has a rugged aluminium frame with a V–shaped bottom for easy measurement on rounded surfaces.
Out of stock
| Accuracy | ±0.05° at 0°-10°, ±0.1° at 80°-90° |
|---|---|
| Dimensions | 153 x 48 x 30 mm |
| Frame | Rugged Aluminium Frame, V-shaped bottom |
| Functions | Alternate Zero, Hold Functions |
| Measurement Range | 360° (90×4) |
| Operating Temperature Range | -5° to +50°C |
| Power | Standard 9V Battery – 500 Hrs typical |
| Repeatability | ±0.05° |
| Resolution | 0.01° at 0°-10°, 0.1° at 10°-90° |
| Serial Port | RS232 |
| Weight | 300 grams |
