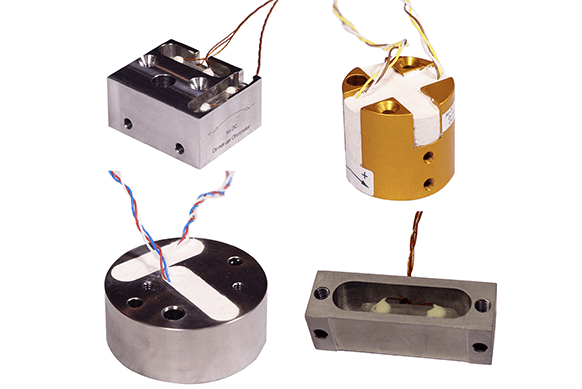

755- and 756-Series Miniature Tilt Sensors contain one or two of our electrolytic tilt transducers in a solid stainless steel or aluminum housing, with holes for vertical or horizontal mounting.

These are the same high-precision sensors that we use in our 500– and 700-Series tiltmeters. Several of the models are available in vacuum-compatible versions designed for minimal outgassing under high-vacuum conditions.

Two options are available, the high-gain 755-Series and mid-range 756-Series.

Typical applications for these compact modules include X-ray mirrors, telescope mounts, wind tunnel models, and medical devices.

The sensors may be operated at a distance (cable length) up to 100m from their Jewell Instruments signal conditioner.

Notes:

1: Custom ranges available
2: Max nonlinearity from BFSL drawn through calibration curve, to 0.05% linearity with 5th order polynomial
3: Ks = % change in scale factor per °C typical
4: For exact Kz & Ks coefficients, we can offer custom temperature characterization for multiple temperature points

*Specifications subject to change without notice on account of continued product development.
